Products Description

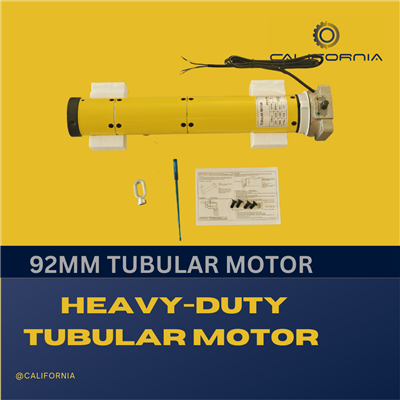

The CA92-L Series Tubular Motor is engineered for heavy-duty industrial roller shutters, combining mechanical limit control with a manual override chain for dependable operation-even during power failures. With torque options up to 550Nm, this motor is ideal for large-scale commercial or industrial applications where power, durability, and reliability are essential.
Motor Size
Product Features

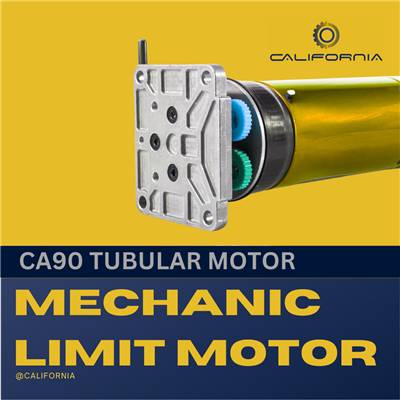

🔧 Mechanical Limit Switch
Precise upper and lower limits ensure reliable positioning with 20 limit turns.

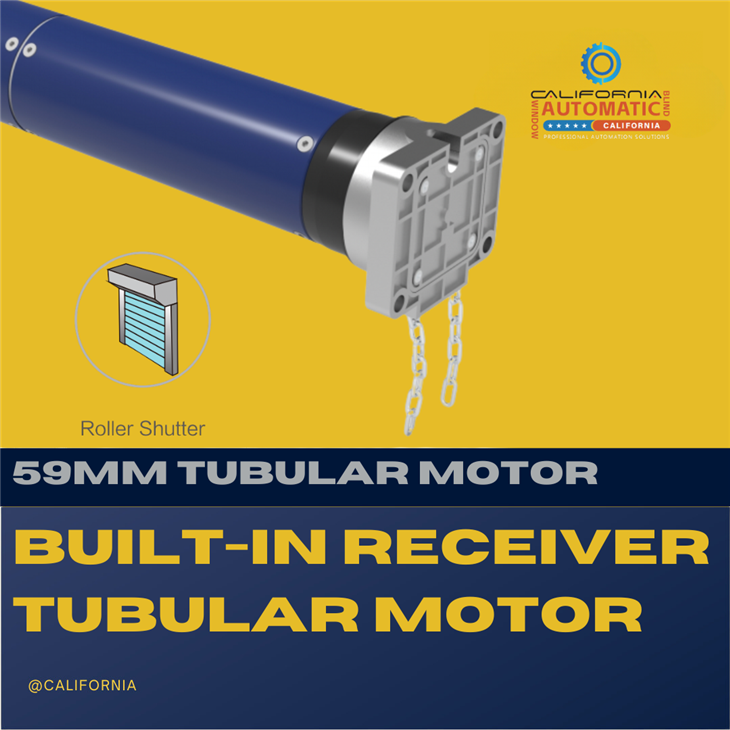

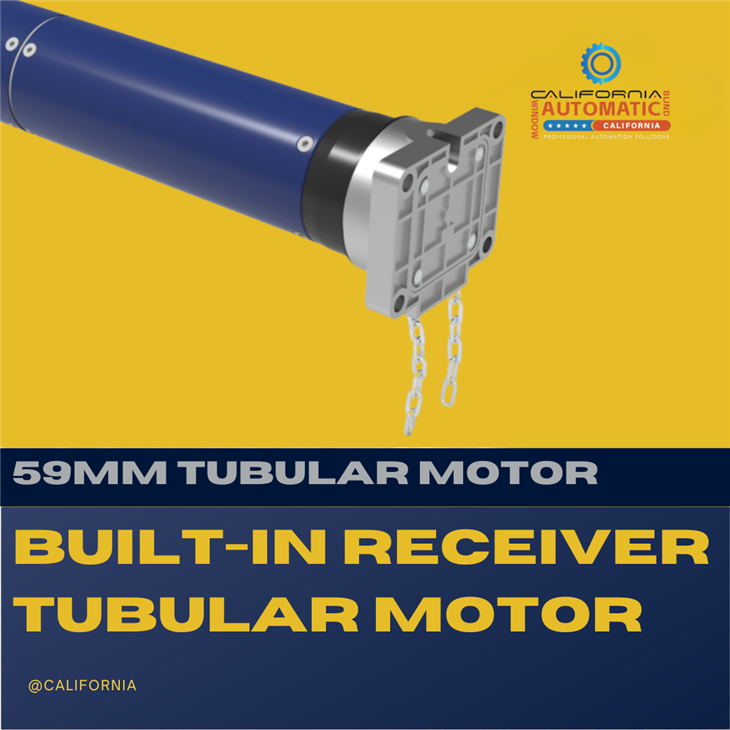

🔗 Manual Chain Override
Enables manual operation during power outages-critical for emergency access.
💪 High Torque Capacity
Up to 550Nm, powerful enough for the largest shutters or doors.
🌀 Efficient Power Output
Rated power up to 890W with stable performance and long lifespan.
💧 IP44 Protection
Splash-resistant enclosure for semi-outdoor and indoor applications.
Technical Specifications
Motor Size
| Model | Torque (Nm) | Speed (rpm) | Voltage | Current | Limit Turns | Weight | |
|---|---|---|---|---|---|---|---|
| CA92-200L | 200 | 18 | 230V | 865W | 3.75A | 20 | 14.0kg |
| CA92-260L | 260 | 12 | 230V | 830W | 3.60A | 20 | 14.0kg |
| CA92-350L | 350 | 8 | 230V | 870W | 3.80A | 20 | 14.0kg |
| CA92-450L | 450 | 6 | 230V | 880W | 3.90A | 20 | 14.0kg |
| Ca92-550L | 550 | 6 | 230V | 890W | 4.00A | 20 |
14.5kg |
