📌 Product Overview

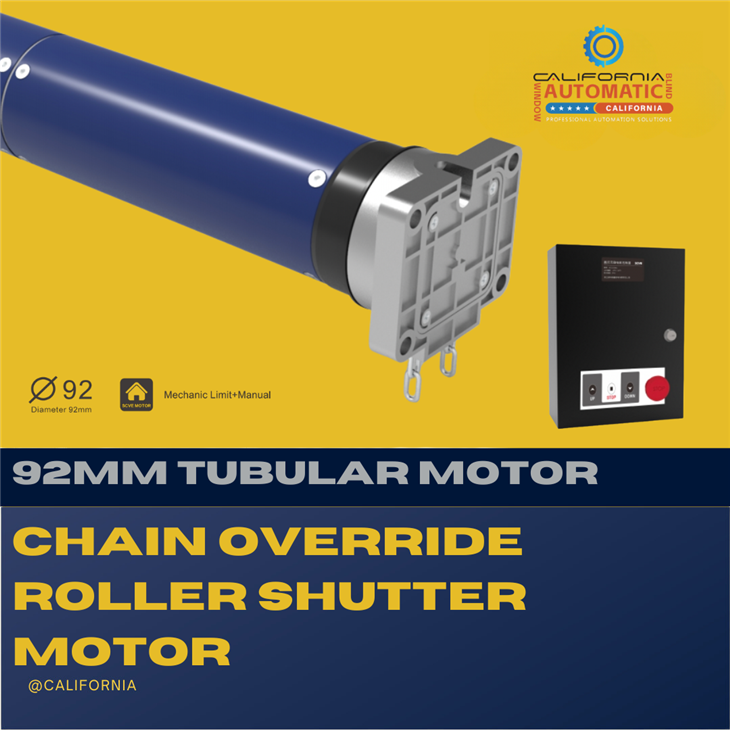

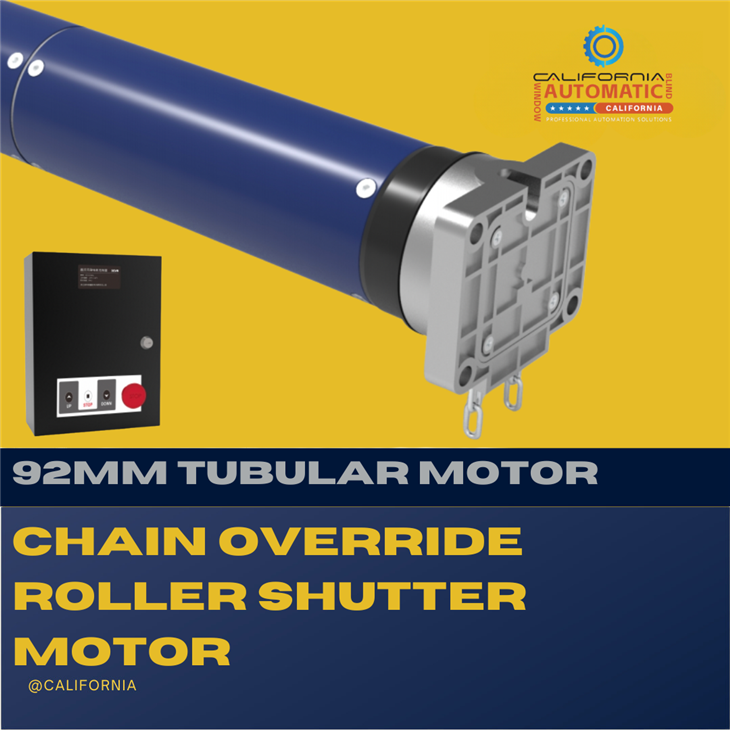

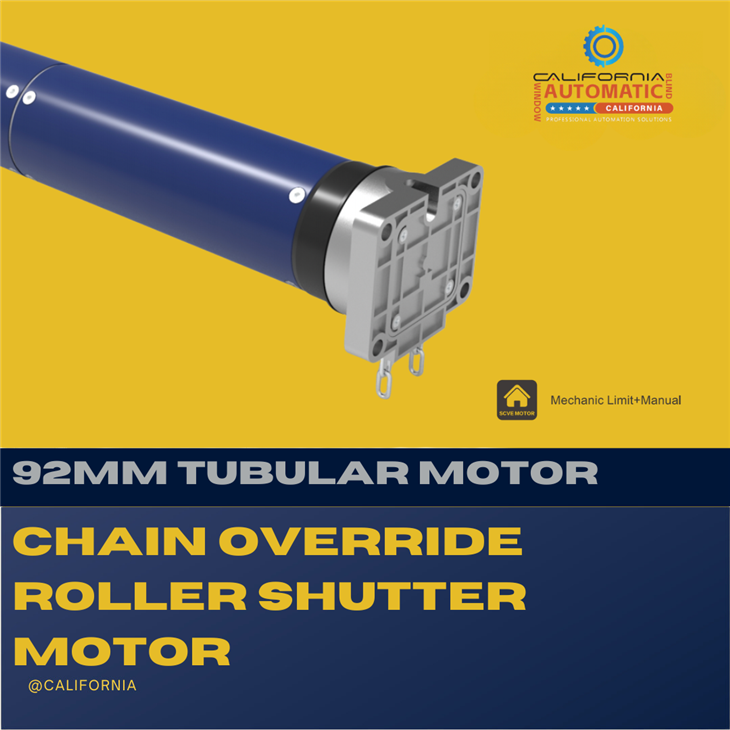

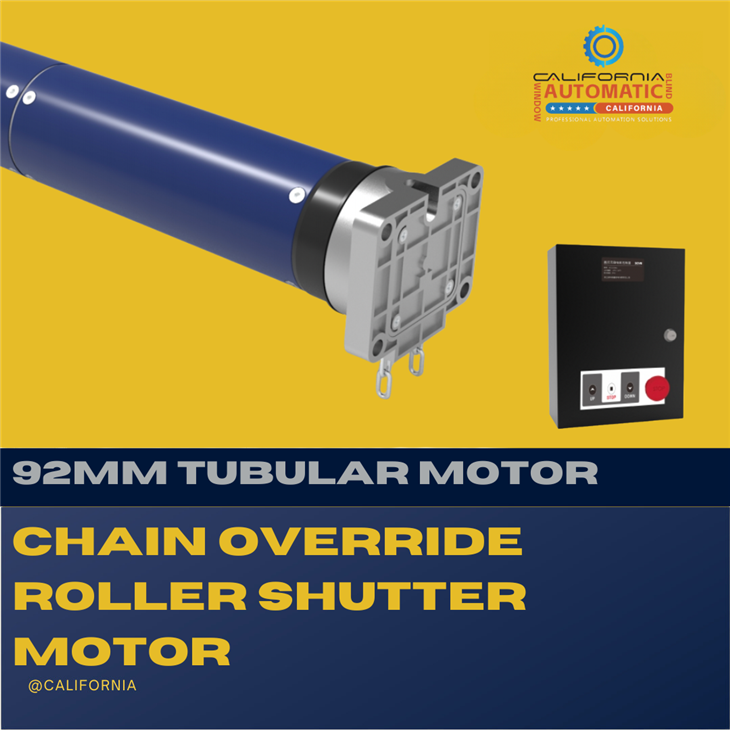

The CA92-KHL series is a robust tubular motor specifically engineered for large-scale and industrial roller shutters. With a powerful torque range up to 170Nm and integrated mechanical limit switch and manual chain override, this motor ensures stable operation and safety even in demanding environments. It also supports advanced control functions like soft start/stop and safety device integration via external controllers.
🌟 Key Features
High Torque Output: Up to 170Nm, perfect for heavy-duty applications.
Manual Chain Override: Enables manual operation during power outages.
Soft Start/Stop: Protects system components by avoiding sudden motion.
Expandable with Controller: Compatible with infrared sensors, access systems, airbags, and other safety devices.
High Durability: Extended motor life with reliable build quality.
Accurate Positioning: Mechanical limit switch ensures precise end positions.
🏭 Applications
Industrial and commercial roller shutters
Heavy-duty security doors
Warehouses, factories, and logistics centers
Large-scale sun shading system Products Descriptio
📋 Product Attributes
| Attribute | Description |
|---|---|
| Motor Type | Tubular motor with mechanical limit |
| Diameter | Ø92mm |
| Manual Operation | Yes, chain override |
| Torque Options | 100Nm / 130Nm / 170Nm |
| Speed | 23–40 rpm |
| Rated Voltage | 230V AC, 50Hz |
| Power | Up to 1000W |
| Current | Up to 5.8A |
| Protection Class | IP44 |
| Limit Turns | 20 |
| Compatible Controller | External control system (infrared, safety, etc.) |
| Noise Level | ≤ 45dB |
| Net Weight |
14.5kg |
📊 Model Comparison Table
| Model | Torque (Nm) | Speed (rpm) | Voltage (V) | Power (W) | Current (A) | Net Weight (kg) |
|---|---|---|---|---|---|---|
| CA92-180KHL | 100 | 40 | 230 | 920 | 5.4 | 14.5 |
| CA92-230KHL | 130 | 30 | 230 | 1000 | 5.4 | 14.5 |
| CA92-300KHL | 170 | 23 | 230 | 1000 | 5.8 | 14.5 |
❓ Frequently Asked Questions (FAQ)
Q1: Can this motor be used for very large roller shutters?
A1: Absolutely. With torque options up to 170Nm and robust design, it's ideal for large, heavy shutters.
Q2: What is the function of the chain manual override?
A2: In the event of a power failure, users can manually operate the shutter using the chain mechanism.
Q3: Is the soft start/stop programmable?
A3: Yes, with a compatible controller, you can enable and customize the soft start/stop behavior.
Q4: Can it be integrated with safety systems?
A4: Yes, the motor works seamlessly with access control, infrared detection, and airbag protection systems when used with the appropriate controller.
Q5: What is the IP rating?
A5: It has an IP44 rating, suitable for indoor and sheltered outdoor environments.
