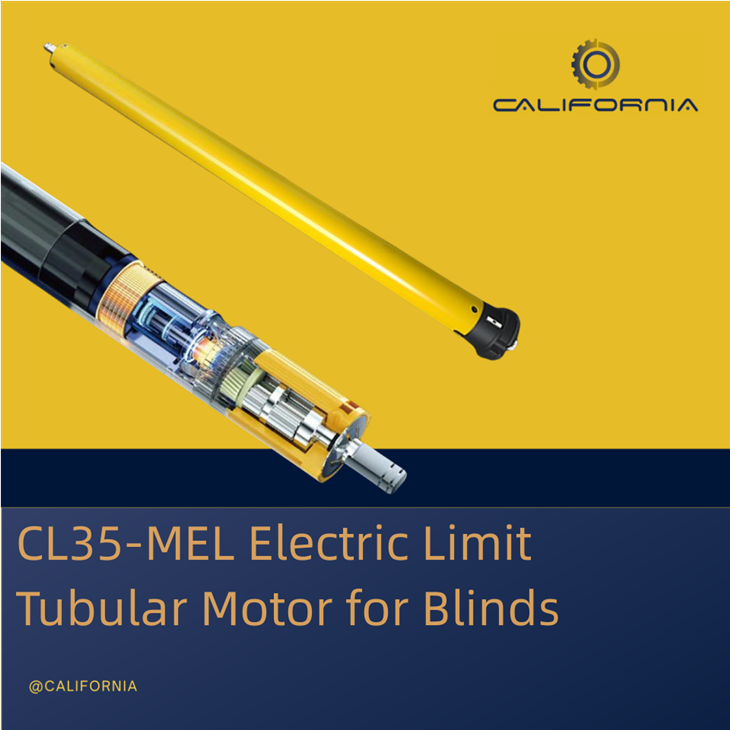

Smart Tubular Motor for Projection Screen

The CA35mm-MEL Smart Tubular Motor for Projection Screen based on zero-gap multi-stroke electronic limit,  provides an advanced solution for automating projection screens. It ensures precise positioning with no gaps, multiple stopping points, and quiet operation-ideal for conference rooms, home theaters, and commercial venues.

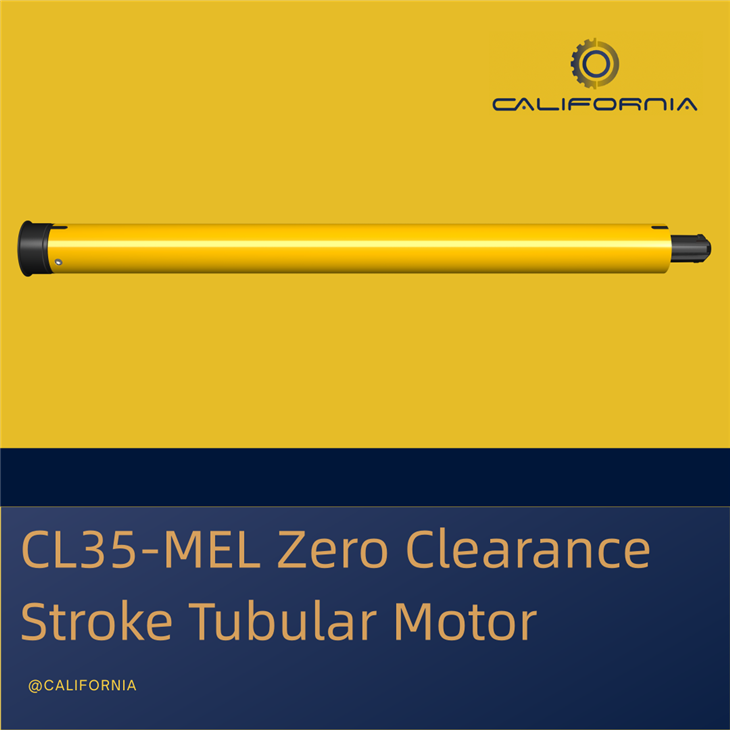

CA35 Zero-Gap Ultra-Quiet Electronic Limit Tubular Motor refers to the gap between the motor bracket and the finished rolling tube being zero, which is mainly achieved by completely hiding the motor limit head inside the finished rolling tube.

When using in blinds motors: Curtains operated with this type of motor will not have light leakage on either side when closed, allowing users to experience better light-blocking effects and visual aesthetics!





• Multi-Stroke Limit Settings

The multi-stroke feature enables the motor to have multiple stopping points, which is useful for various screen positions throughout the day.

• Precision Positioning

CL35mm-MEL Zero clearance stroke electronic limit tubular motor provide exact positioning capabilities, allowing the projection screen to stop at the desired location with zero gap, ensuring a clean and professional appearance.

• Low Noise Operation

This motor is designed with a patented helical gear technology, ensuring ultra-quiet operation with noise levels below 30dB, which is quieter than a whisper.

• Compact Design

The zero-gap design reduces the physical space inside the motor, leading to a more compact structure. This helps in reducing material usage, weight, and potentially improving overall mechanical efficiency.







Comparision between Zero clearance stroke motor and common motor

Zero Gap Motor

Gap between the bracket andaluminum tube of blinds <0.5cm

Normal Motor：A large gap between the bracket and
aluminum tube of blinds









product parameters

Torque (N.m)	Rotating(rpm)	Motor Diameter	Rated Voltage(V)	Rated Power(W)	Rated Current(A)	IP Class
6 N.m	28rpm	35mm	230V	115W	0.485A	IP44
