Battery Radio Tubular Motor

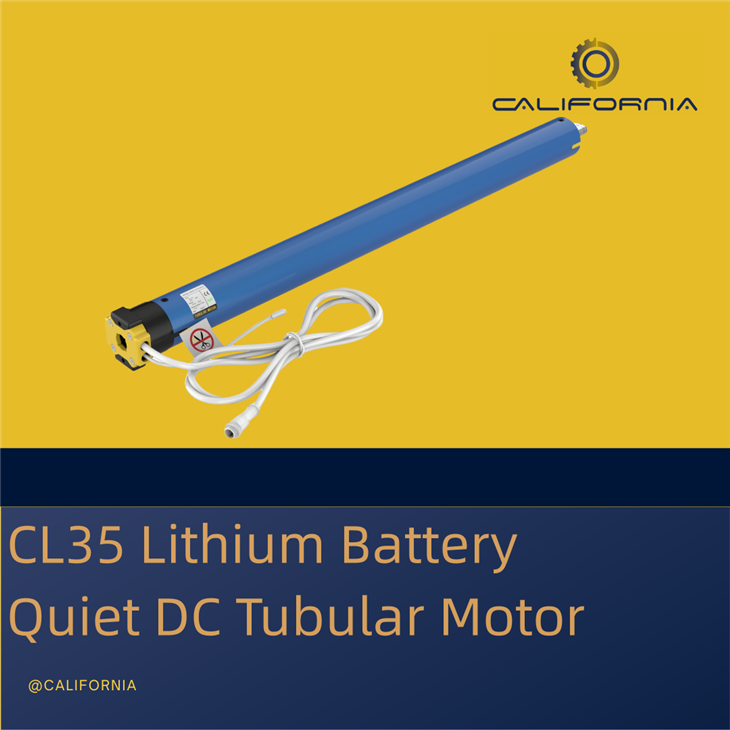

The CL35-ES-E Lithium Battery Radio Tubular Motor specifically designed for automated control devices such as electric curtains, electric sunshades, and electric rolling shutter doors. It has a built-in lithium battery, allowing it to operate without an external power source, making it ideal for wireless installation or environments where wiring is inconvenient. It can also be used in medium and small-size aluminum and wooden blind products. Furthermore, the DC lithium battery motor generates little heat and can operate continuously for extended periods without time limits on thermal protection.



• Two options

Support lithium battery charged. There are two models to choose from: one with a built-in lithium battery and the other with an external lithium battery.

The built-in lithium battery has a voltage of 14.8V and a capacity of 3000mAh.

• Low power consumption.

A low power consumption patent design for a tubular motor can be matched with an external battery bar or a solar panel for power supply. This design is particularly beneficial for environments where traditional wiring may be challenging.

• Electronic Limit

Equipped with electronic memory limit function to ensure precise positioning. Also have automatic correction function for displacement caused by braking.











power Supply

01.

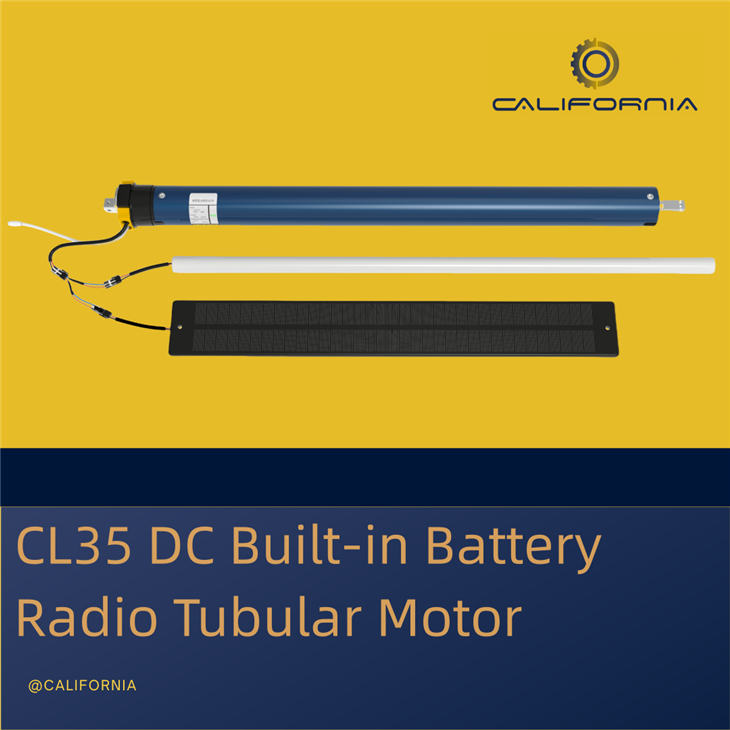

Solar panel for built-in battery charging

Suitable for the places where didn't reserve power supply, and effectively solves the trouble of having no reserved power supply. Need to match a

02.

External DC supply

Use external DC power supply, to control motor run Up Down Stop, easy operation and stable performance.

This motor also equipped with an obstruction detection and rebound feature to ensure the safety of system users.









product parameters



Torque (N.m)	Rotating(rpm)	Motor Diameter	Rated Voltage	Rated Power(W)	Rated Current(A)	IP Class
6 N.m	18rpm	35mm	DC 14.8V	36W	3A	IP44

FAQ





01. How about the running noise?

The CL35-ES-E Lithium Battery Radio DC Tubular Motor designed to reduce noise during operation, noise can lower to 40dB, providing a quieter environment for users.

02. Can I use other series of remote control?

We suggest you buy our own remote and emitter, otherwise not the same brand product can not work with our motors.

03.  How to guarantee the good quality?

Always a pre-production sample before mass production;
Always final Inspection before shipment;

04. What is the MOQ?  And can you make OEM or ODM service?

You can buy 1 piece as sample for testing, later discussing official order.

We have good performance marketing and design teams. You can send us your logo(Ai.format) so we could design it with the product to you to confirm.
