Product Detail

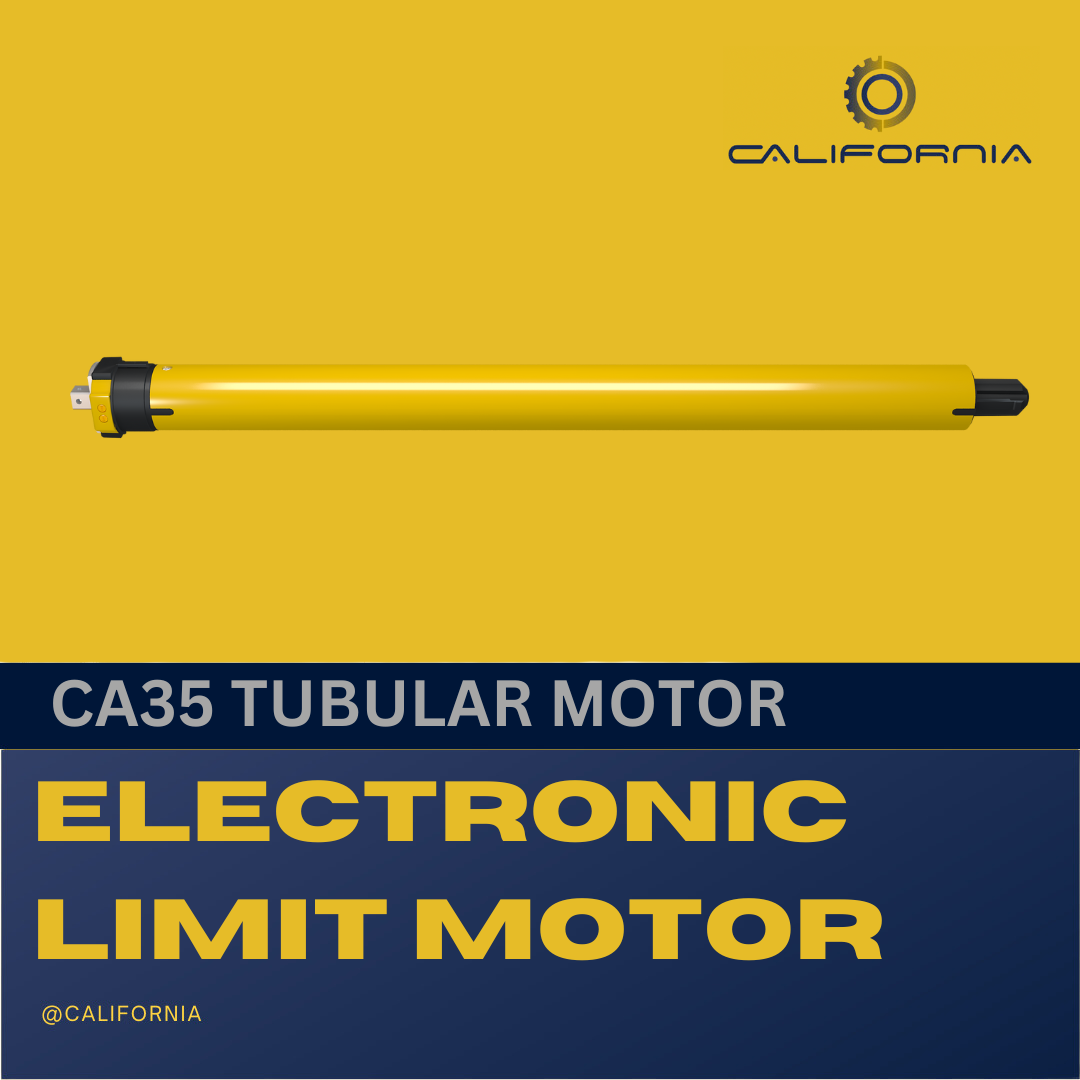

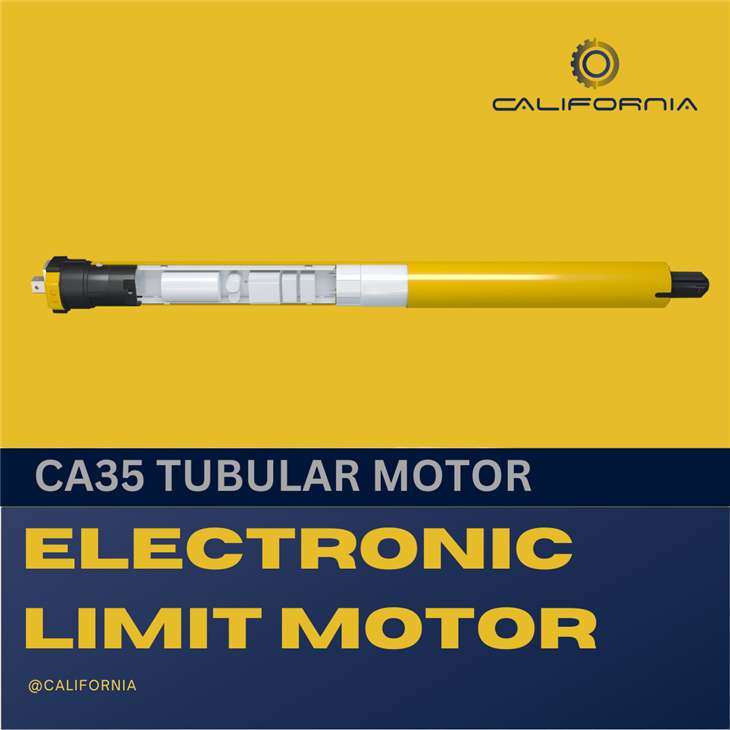

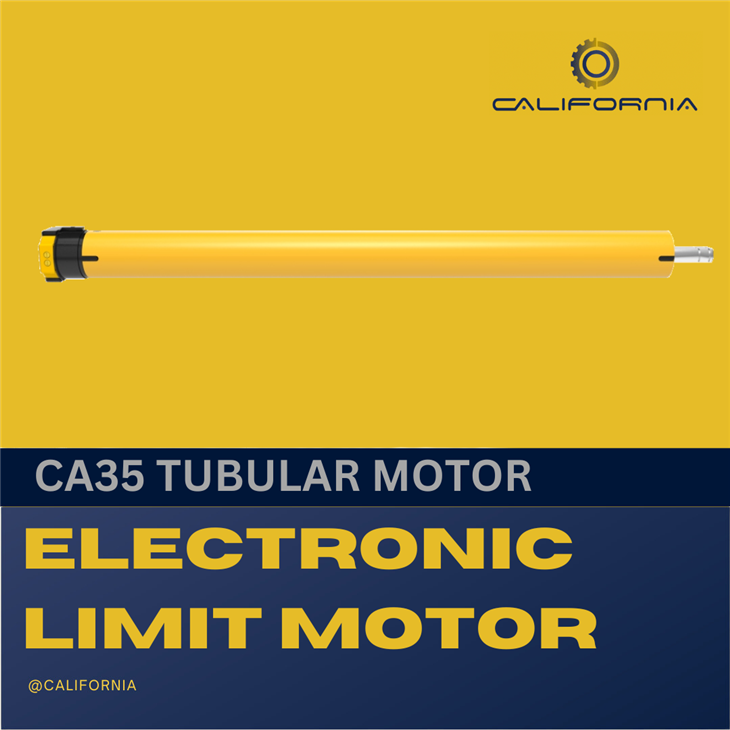

The 35MM Electronic Limit Radio AC Motor is a high-performance tubular motor designed for roller shutters and external screens, featuring wireless connectivity with RF, WiFi, Bluetooth, and Zigbee compatibility. Its electronic limit setting allows for precise and convenient adjustments via remote control, supporting up to six limit positions.
Built for smart automation, the 35MM integrates a superheterodyne receiving module with long-range, anti-interference capabilities (-110dBm sensitivity). Additionally, the built-in control board is covered by a sealed box for enhanced safety and durability. It supports wired control via dry contacts and RS485, as well as wireless control through remote, mobile app, or voice assistants.
Available in 230V AC 50/60Hz and 120V AC 60Hz versions, the 35MM series offers a versatile and reliable solution for modern motorized shading systems.

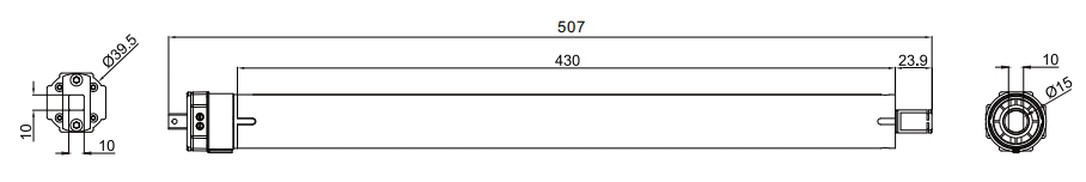

motor size
Features
Electronic Limit Setting for Precision Control
Set up to six limit positions using a remote control for easy customization.
Convenient installation with adjustable limit positions.
Smart Control & Wireless Connectivity
Supports RF, WiFi, Bluetooth, and Zigbee for seamless smart home integration.
Compatible with mobile apps and voice assistants for hands-free operation.
Industrial-Grade Reliability & Durability
High-impact resistant relay and sealed control board for enhanced protection.
Superheterodyne module ensures long control distance and anti-interference stability (-110dBm sensitivity).
Flexible Installation & Control Options
Supports wired control via RS485 and dry contact, along with wireless remote operation.
Compact 35mm diameter makes it suitable for various installations.
Applications
Motorized Roller Shutters
External Sunshade Screens
Smart Home Automation Systems
Remote-Controlled Window Coverings
Commercial & Residential Sun Protection

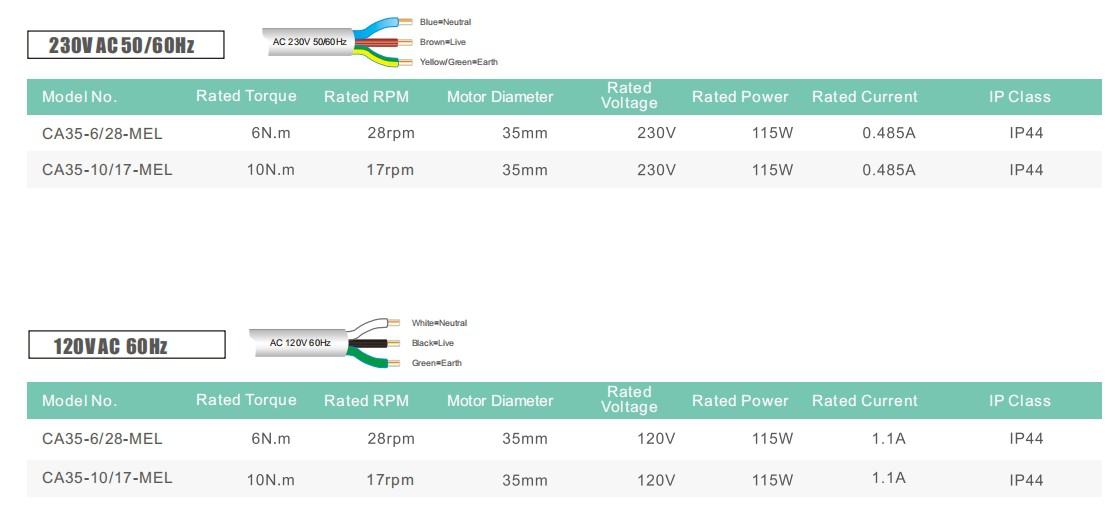

Specifications
Frequently Asked Questions (FAQ):
Q1: How many limit positions can I set with this motor?
A1: The 35MM Electronic Limit Motor allows you to set up to six limit positions via remote control, offering customizable shading control.
Q2: Does this motor support smart home integration?
A2: Yes, it is compatible with WiFi, Bluetooth, and Zigbee, allowing integration with smart home systems via mobile apps or voice assistants.
Q3: Can I use this motor in a wired control setup?
A3: Yes, the 35MM supports both wired control (RS485 & dry contact) and wireless control, providing flexible installation options.
Q4: What is the range of the remote control?
A4: The built-in superheterodyne receiving module ensures a long control distance and strong anti-interference capability (-110dBm sensitivity).
Q5: Is this motor weatherproof?
A5: The IP44 rating protects against dust and water splashes, making it suitable for both indoor and outdoor applications.
