As a supplier of AC rolling door motors, I often get asked about the braking system of these motors. The braking system is a crucial component of an AC rolling door motor, ensuring safety, reliability, and efficient operation. In this blog post, I'll delve into what the braking system of an AC rolling door motor is, how it works, and its importance.
What is the Braking System of an AC Rolling Door Motor?
The braking system of an AC rolling door motor is a mechanism designed to stop the movement of the rolling door quickly and hold it in place when required. It acts as a safety net, preventing the door from moving unexpectedly due to gravity, external forces, or power failures. There are mainly two types of braking systems commonly used in AC rolling door motors: electromagnetic brakes and mechanical brakes.
Electromagnetic Brakes
Electromagnetic brakes are widely used in modern AC rolling door motors. They operate based on the principle of electromagnetism. When the motor is powered on, the electromagnetic coil in the brake is energized, creating a magnetic field. This magnetic field pulls the brake disc or brake pad away from the braking surface, allowing the motor to rotate freely and move the rolling door.
When the power is cut off, either intentionally by the control system or due to a power failure, the electromagnetic coil loses its magnetic field. A spring then pushes the brake disc or brake pad against the braking surface, creating friction. This friction stops the rotation of the motor shaft almost instantly, halting the movement of the rolling door.

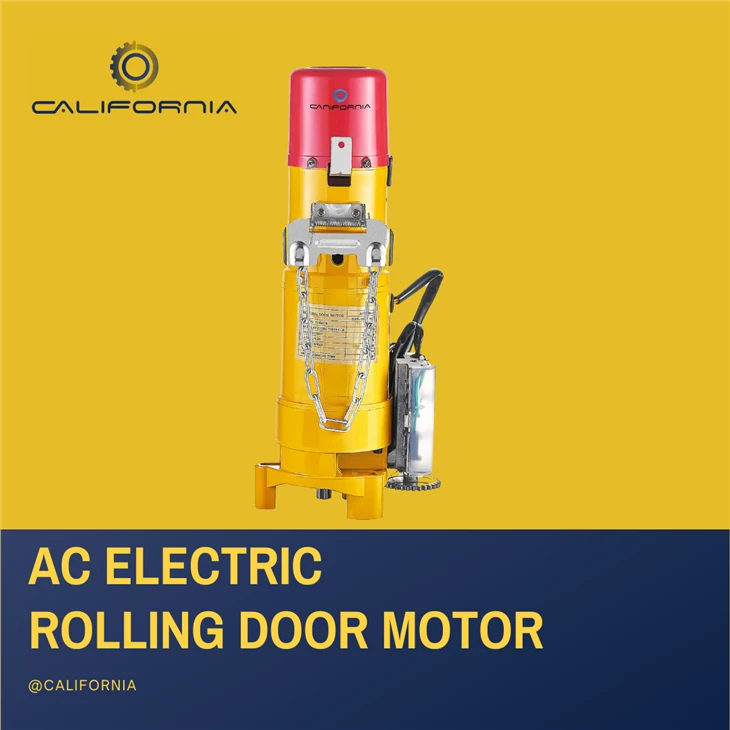

The advantage of electromagnetic brakes is their fast response time. They can stop the door within a fraction of a second, providing a high level of safety. They are also relatively easy to control and can be integrated with the motor's control system for precise operation. For example, in an Electric Roller Garage Door Opener, electromagnetic brakes ensure that the garage door stops accurately at the desired position and remains stationary when not in use.
Mechanical Brakes
Mechanical brakes, on the other hand, rely on mechanical components such as levers, springs, and friction materials to achieve braking. They are often simpler in design compared to electromagnetic brakes.
One common type of mechanical brake in AC rolling door motors is the centrifugal brake. As the motor rotates at a certain speed, centrifugal force causes the brake shoes or pads to expand and come into contact with the braking surface. This creates friction and slows down or stops the motor. When the motor speed decreases, the centrifugal force reduces, and the brake shoes retract, allowing the motor to rotate freely again.
Mechanical brakes are generally more robust and can withstand harsh operating conditions. They are also less affected by electrical failures. However, their response time may be slower than that of electromagnetic brakes, and they may require more maintenance to ensure proper operation. For instance, in a Rolling Shutter Motor For 600Kg, a well - maintained mechanical brake can provide reliable braking performance for heavy - duty applications.
How the Braking System Works in an AC Rolling Door Motor
The operation of the braking system in an AC rolling door motor is closely tied to the motor's control system. When the user sends a command to open or close the door, the control system activates the motor. At the same time, it also controls the braking system to release the brake so that the motor can rotate.
During the movement of the door, the control system continuously monitors the position and speed of the door. When the door reaches the desired position, the control system cuts off the power to the motor. Simultaneously, it triggers the braking system to engage, stopping the door precisely at the right place.
In case of an emergency, such as a power failure or a sudden stop command, the braking system kicks in immediately. The electromagnetic brake loses its magnetic field and engages the brake, or the mechanical brake activates based on its design principle. This ensures that the door stops safely and does not pose a danger to people or property.
Importance of the Braking System
The braking system in an AC rolling door motor is of utmost importance for several reasons:
Safety
Safety is the primary concern when it comes to rolling doors. A properly functioning braking system prevents the door from falling suddenly due to gravity or external forces. This is especially crucial in commercial and industrial settings where heavy rolling doors are used. For example, a 600 kg Rolling Shutter Motor with a reliable braking system can prevent accidents that could cause serious injuries or damage to equipment.
Precision
The braking system allows for precise control of the door's position. Whether it's a garage door that needs to open and close smoothly or an industrial rolling door that requires accurate positioning for loading and unloading, the ability to stop the door exactly where it's needed is essential. This precision improves the overall efficiency of the door operation.
Durability
By stopping the door quickly and smoothly, the braking system reduces wear and tear on the motor and other components of the rolling door system. It prevents excessive stress on the motor shaft and gears, extending the lifespan of the entire system. This means lower maintenance costs and fewer breakdowns over time.
Maintenance of the Braking System
To ensure the proper functioning of the braking system in an AC rolling door motor, regular maintenance is necessary. For electromagnetic brakes, it's important to check the electrical connections and the condition of the electromagnetic coil. Any loose connections or damaged coils can affect the brake's performance.
For mechanical brakes, the friction materials such as brake shoes or pads need to be inspected regularly for wear. If they are worn out, they should be replaced promptly to maintain effective braking. Additionally, the mechanical components such as springs and levers should be checked for proper operation and lubricated if necessary.
Conclusion
In conclusion, the braking system of an AC rolling door motor is a vital part of the door's operation. Whether it's an electromagnetic brake for fast response and precise control or a mechanical brake for robustness and reliability, the braking system ensures the safety, precision, and durability of the rolling door.
As a supplier of AC rolling door motors, we understand the importance of providing high - quality braking systems in our products. We offer a range of motors with different braking options to meet the diverse needs of our customers. If you're in the market for an AC rolling door motor or have any questions about the braking system, we're here to help. Contact us for more information and to discuss your specific requirements. We look forward to working with you to find the perfect solution for your rolling door needs.
References
- "Electric Motors and Drives: Fundamentals, Types and Applications" by Austin Hughes and Bill Drury
- "Handbook of Electric Motors" by Ira N. Fishman
