Hey there! As a supplier of Tuya Tubular Motors, I'm super excited to walk you through the process of installing the control box for these motors. It might seem a bit daunting at first, but trust me, with the right steps and a bit of patience, you'll have it up and running in no time.
What You'll Need Before You Start
Before we jump into the installation process, it's important to gather all the necessary tools and materials. You'll need a screwdriver (both flat - head and Phillips - head usually come in handy), a voltage tester to make sure everything's safe, some wire strippers, and of course, the control box itself and the Tuya Tubular Motor. Also, don't forget to have the installation manual close by, as it's a great reference.
Step 1: Preparation
First things first, safety is key. Make sure the power supply to the area where you'll be installing the control box is turned off. This will prevent any electrical shocks or short - circuits. Next, find a suitable location for the control box. It should be close to the tubular motor but also in a place where it's easily accessible for future maintenance. A wall near the motor is usually a good spot. Mark the position on the wall where you'll mount the control box using a pencil.
Step 2: Mounting the Control Box
Take the control box and align it with the marks you made on the wall. Use the screws that came with the control box and the screwdriver to secure it in place. Make sure it's firmly attached to the wall, as any loose mounting could cause problems later on. Double - check that the box is level; you can use a small level tool if you have one. This ensures that the internal components of the control box are properly aligned.
Step 3: Connecting the Wires
Now, this is the most crucial part of the installation. Open the control box and locate the terminal blocks. The wires from the Tuya Tubular Motor will need to be connected to these terminal blocks. Use the wire strippers to carefully strip about half an inch of insulation from the ends of the motor wires. Match the colors of the wires from the motor to the corresponding terminals in the control box. Usually, the installation manual will have a wiring diagram to guide you. For example, the power wires might be black and red, and you'll connect them to the appropriate power terminals in the box.
Once you've connected the wires, use the screwdriver to tighten the terminal screws. This ensures a good electrical connection. After connecting all the wires from the motor, you'll also need to connect the power supply wires to the control box. Again, follow the wiring diagram in the manual to make sure you're connecting them correctly.
Step 4: Testing the Connection
Before you turn the power back on, use the voltage tester to check if there's any voltage in the wires or the control box. This is an extra safety measure. Once you're sure there's no voltage, turn the power supply back on. Now, test the Tuya Tubular Motor using the control box. You should be able to operate the motor to open and close. If it doesn't work, double - check all the wire connections. It could be a loose connection or a mis - matched wire.
Step 5: Additional Features and Configurations

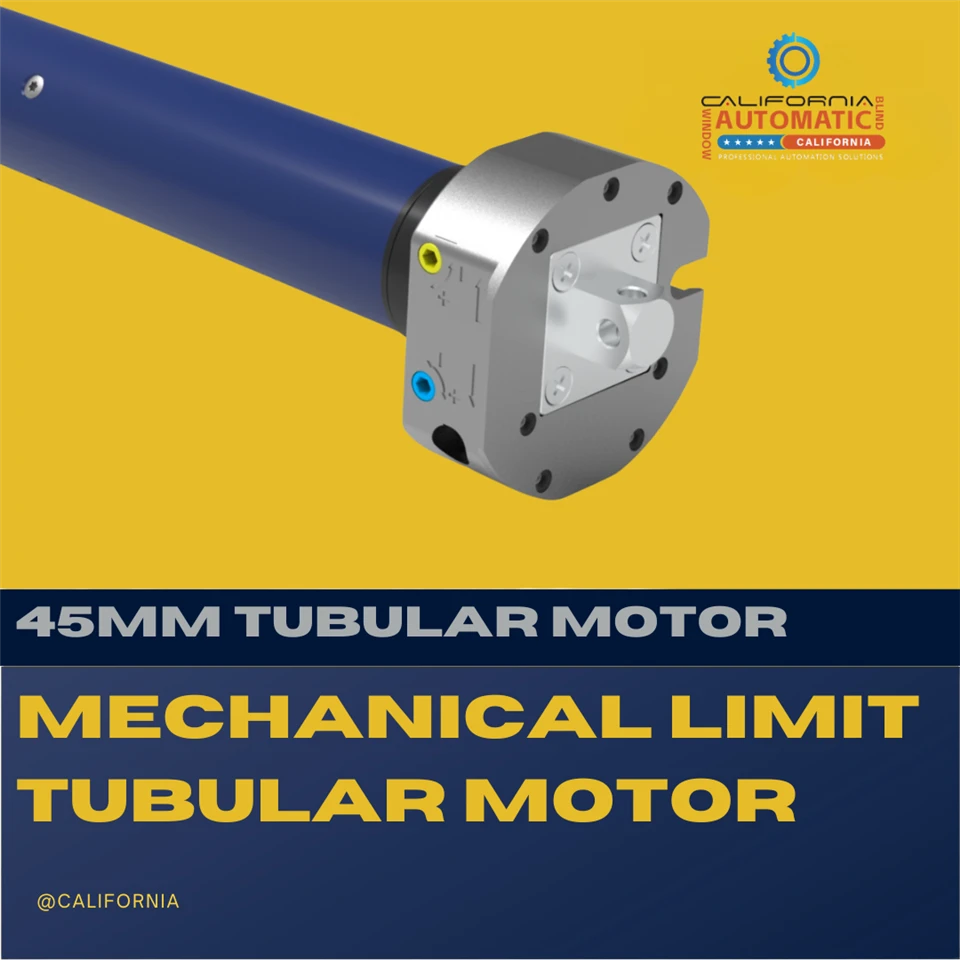

Some Tuya Tubular Motors come with additional features like the Safety Brake. If your motor has this feature, you might need to configure it through the control box. Refer to the manual for instructions on how to set up these features. You can also explore other advanced features such as the Tubular Motor With Rebound or the Smart Tubular Engine. These features often require some configuration in the control box, and the manual will provide detailed steps.
Troubleshooting Tips
If you encounter any problems during the installation or operation of the control box, here are some common issues and solutions. If the motor doesn't start, check the power supply and the wire connections. A loose wire or a tripped circuit breaker could be the culprit. If the motor runs but makes strange noises, it could be a mechanical issue with the motor itself or a problem with the control settings in the box. In such cases, it's best to refer to the manual or contact our support team.
Why Choose Our Tuya Tubular Motors and Control Boxes
Our Tuya Tubular Motors and control boxes are designed with high - quality materials and advanced technology. They offer reliable performance and are easy to install, as you've just seen. Whether you're using them for a small residential project or a large commercial application, they'll meet your needs. The control boxes are user - friendly, and the motors come with a range of features that enhance their functionality.
Contact Us for More
If you're interested in purchasing Tuya Tubular Motors or need more information about the installation process, don't hesitate to get in touch. We're here to answer all your questions and help you find the right products for your project. Our team of experts can provide you with detailed guidance on installation, configuration, and maintenance.
References
- Tuya Tubular Motor Installation Manual
- Electrical Safety Guidelines for Motor Installations
