Product Detail

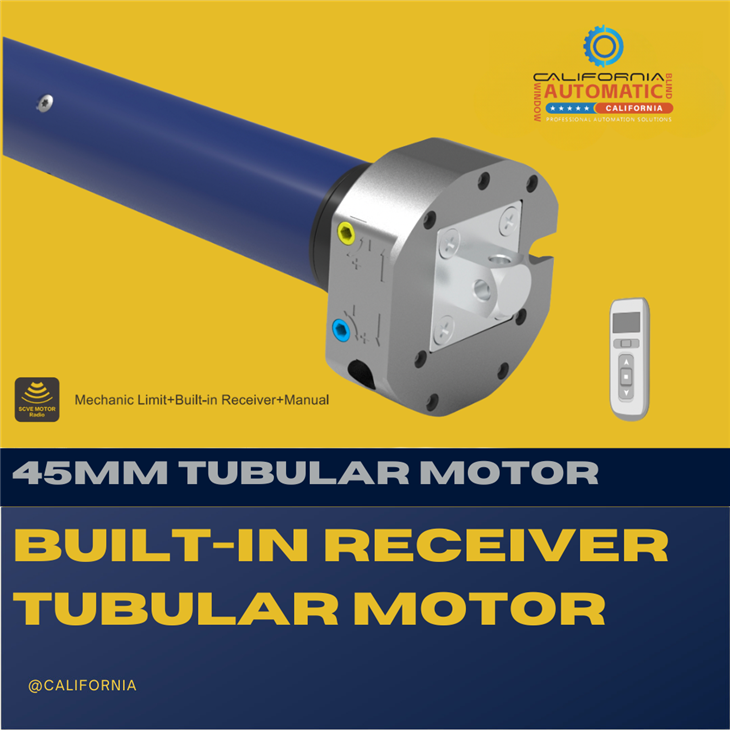

The CA45-RM series is a multifunctional tubular motor designed for smart shading and automation. It combines a mechanical limit switch with a built-in receiver for wireless control and includes manual override functionality, allowing operation even during power outages. Ideal for roller shutters, awnings, and blinds, this motor offers quiet, smooth, and durable performance.
Product Features
Built-in Receiver: Wireless RF control compatibility with Series remotes.
Manual Override: Operate manually in case of power failure.
Mechanical Limit: Accurate end-limit positioning ensures precision.
Smooth & Quiet: Operates as low as 44dB for a peaceful environment.
Durable IP44 Housing: Protection from dust and light water ingress.
Products Size
Model Table
| Attribute | Description |
|---|---|
| Motor Type | Tubular motor with mechanical limit |
| Diameter | Ø45mm |
| Voltage Options | 230V (50Hz) / 110V (60Hz) |
| Torque Range | 10Nm to 60Nm |
| Speed Range | 12–20 rpm |
| Wireless Receiver | Built-in, supports remote series |
| Manual Operation | Yes, built-in manual override |
| Noise Level | ≤44dB |
| Protection Rating | IP44 (dustproof and splash-resistant) |
| Control Method | RF remote + Manual Chain + Wired |
| Limit Setting | Mechanical, 15 turns |
❓ Frequently Asked Questions (FAQ)
Q1: Does this motor work with any remote?
A1: The motor includes a built-in RF receiver and works perfectly with the series remotes.
Q2: What happens if there is a power failure?
A2: The manual override lets you open or close the blinds manually via the crank handle mechanism.
Q3: Can I install this for outdoor use?
A3: Yes, it's IP44 rated, making it suitable for outdoor roller shutters and awnings.
Q4: How is the limit set?
A4: The motor uses a mechanical limit switch system, allowing precise upper and lower end-stop setting.
Q5: What's the typical lifespan of this motor?
A5: Designed for high durability, the motor can perform over 10,000 cycles under normal usage.
