Product Detail

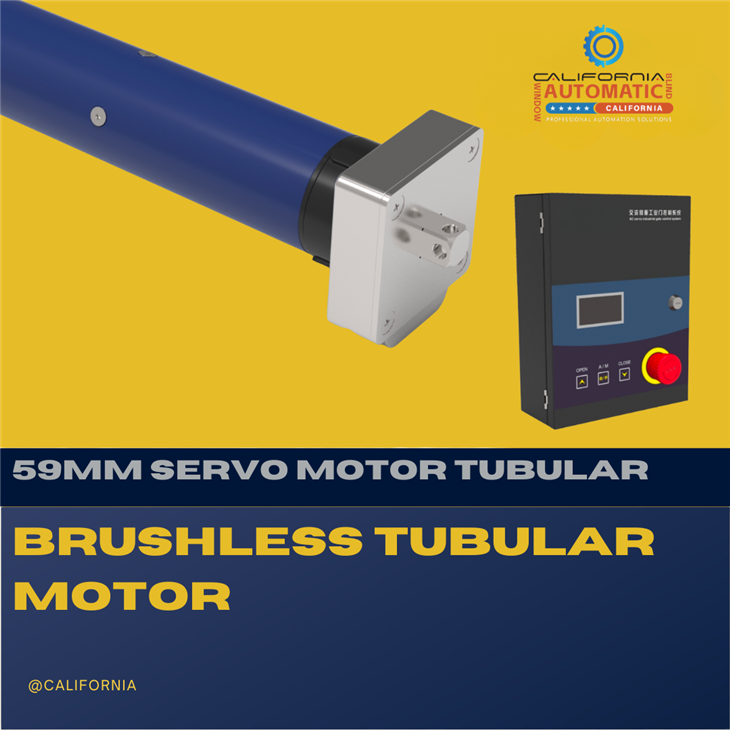

The CA59-DCM series features a state-of-the-art brushless servo motor design, engineered for high-performance industrial doors and automation systems. This motor delivers ultra-quiet, high-speed operation, with electronic limit positioning, manual override, and the ability to integrate with smart control and safety systems. Designed for reliability, long service life, and precision control, it is the ideal solution for smart roller shutters and access-controlled environments.
Product Features
Brushless Servo Motor: Provides stable operation, low sound (<45dB), and extended life.
Electronic Limit Control: High precision for accurate end-position control.
Manual Operation When Powered Off: Door can be opened or closed manually in emergencies.
Soft Start/Stop Function: Ensures smooth motion, reduces wear and tear.
Advanced Integration: Supports connection with infrared protection, access control, and airbag safety devices using external controller.
Reliable and Efficient: Built to perform in continuous-use industrial environments.
Products Description
| Attribute | Description |
|---|---|
| Motor Type | Brushless servo tubular motor |
| Diameter | Ø59mm |
| Limit Type | Electronic limit |
| Manual Override | Yes |
| Torque Options | 80Nm / 100Nm / 120Nm |
| Speed | 15–26 rpm |
| Rated Voltage | 230V AC |
| Power | 280–350W |
| Current Draw | 0.20–1.30 A |
| Protection Class | IP44 |
| Noise Level | Low (approx. <45dB) |
| Net Weight | 12kg |
Technical Specifications
| Model | Torque (Nm) | Speed (rpm) | Voltage (V) | Power (W) | Current (A) | Net Weight (kg) |
|---|---|---|---|---|---|---|
| CA59-DCM13-80 | 80 | 26 | 230 | 350 | 0.20 | 12 |
| CA59-DCM13-100 | 100 | 20 | 230 | 280 | 1.30 | 12 |
| CA59-DCM13-120 | 120 | 15 | 230 | 280 | 1.30 | 12 |
FAQ
Q1: What is the advantage of using a brushless motor over a brushed one?
A1: Brushless motors offer longer lifespan, quieter operation, higher efficiency, and reduced maintenance.
Q2: Can the motor work with access control systems?
A2: Yes, the motor is compatible with controllers that can connect to access control, IR sensors, and airbag protection.
Q3: Is it possible to operate the door manually during a power outage?
A3: Absolutely. The CA59-DCM features a manual override for emergency operation.
Q4: What's the typical noise level?
A4: Thanks to the brushless design, the motor operates quietly with sound levels below 45dB.
Q5: Does it support soft start and stop?
A5: Yes, this function ensures smoother operation and helps prolong the motor's service life.
