Products Description

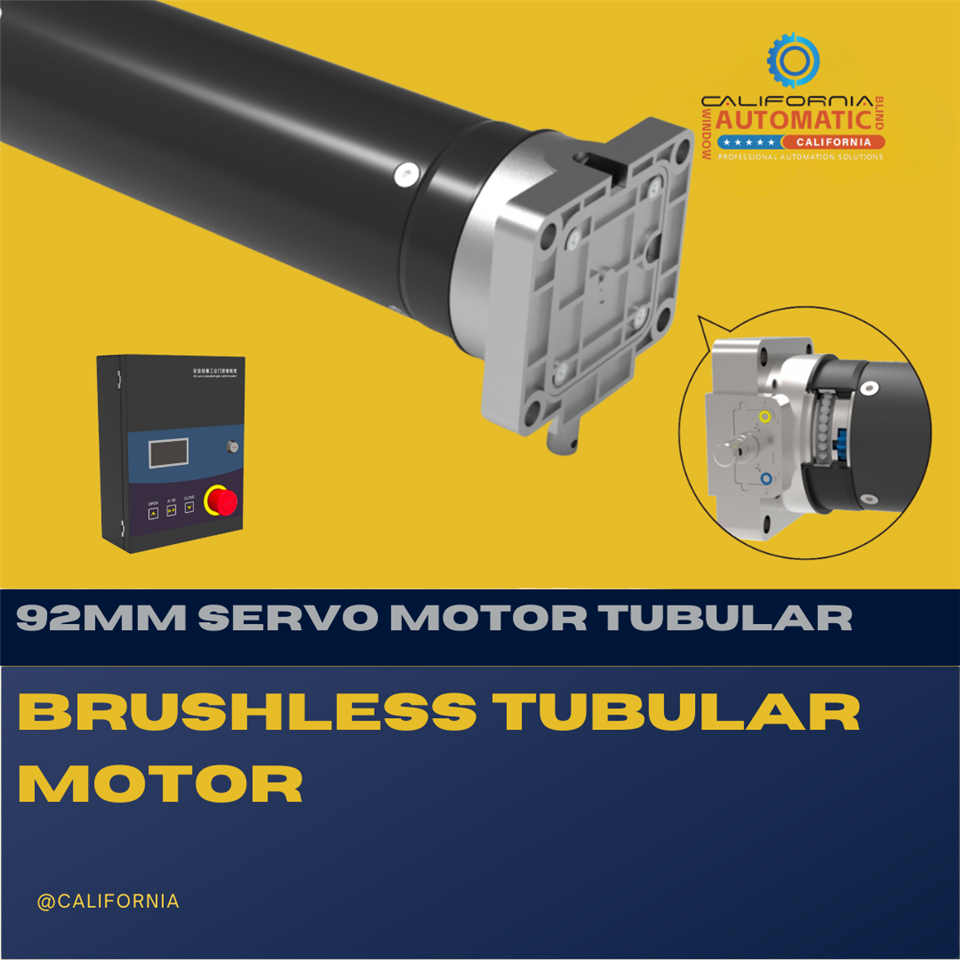

The CA92-DCM is a high-performance brushless DC tubular motor designed for industrial roller shutters and smart door systems. Equipped with electronic limit, a manual override function, and a built-in receiver, it offers the perfect combination of intelligent automation, safety, and manual operability in a sleek 92mm body.
Product Features
Brushless DC Drive: Ensures fast speed, stable performance, low noise, and long lifespan.
Electronic Limit System: Delivers precise limit control with long-term stability.
Manual Override: Allows manual opening/closing when power is off.
Soft Start/Stop Function: Enhances operational smoothness and reduces motor wear.
Safety Integration Ready: Compatible with controllers that support infrared protection, access control, and airbag protection systems.
Product Attributes
| Attribute | Description |
|---|---|
| Model | SF92-230DCM / SF92-300DCM |
| Motor Type | Brushless DC tubular motor |
| Diameter | 92mm |
| Torque Options | 230Nm / 300Nm |
| Speed | 30 rpm / 23 rpm |
| Rated Voltage | 230V AC |
| Power Consumption | 520W |
| Rated Current | 3.4A |
| Limit Control | Electronic limit with built-in receiver |
| Manual Operation | Supported (override function) |
| Protection Class | IP44 |
| Weight | 14.3 kg |
| Frequency | 50Hz |
📊 Model Comparison Table
| Model | Torque (N.m) | Speed (rpm) | Voltage (V) | Power (W) | Current (A) | Weight (kg) |
|---|---|---|---|---|---|---|
| CA92-230DCM | 230 | 30 | 230 | 520 | 3.4 | 14.3 |
| CA92-300DCM | 300 | 23 | 230 | 520 | 3.4 | 14.3 |
Frequently Asked Questions (FAQ)
Q1: What is the benefit of using a brushless DC motor?
A1: It offers longer lifespan, better energy efficiency, and smoother, quieter operation compared to brushed or AC motors.
Q2: Can this motor be used manually in case of a power cut?
A2: Yes, the CA92-DCM has a built-in manual override feature for emergency use.
Q3: What is the difference between 230DCM and 300DCM models?
A3: The main difference is torque output: 230Nm vs. 300Nm. Choose based on your load requirements.
Q4: Is the electronic limit adjustable?
A4: Yes, it offers high precision and can be easily configured via compatible controllers.
Q5: Can I integrate this motor with my existing smart access system?
A5: Absolutely. It's compatible with safety devices and access control systems via controller integration.
